STM32F429I Discovery

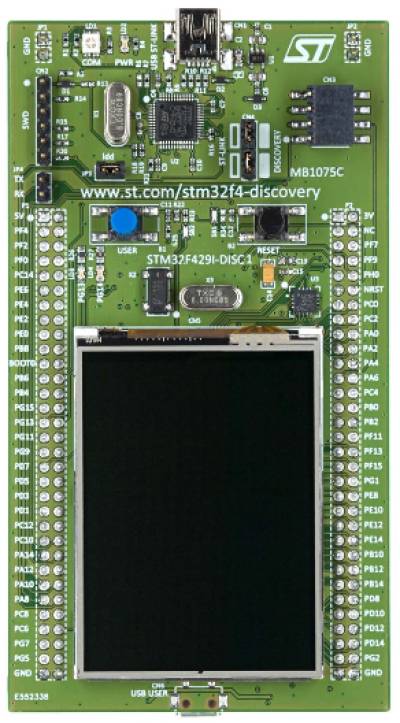

Plataforma STM32F429I-DISCO:

  • chip STM32F429ZIT6: ARM Cortex-M4F core, 2 MB of Flash memory, 256 KB of RAM, encapsulado LQFP144
  • alimentación: USB o externa 3V o 5V
  • pantalla TFT LCD 2.4“ QVGA
  • SDRAM 64 Mbits
  • sensor de movimiento y giróscopo de 3 ejes en L3GD20
  • 6 leds: LD1 (rojo/verde) USB; LD2 (rojo) alimentación 3.3V; LD3 (rojo), LD4 (verde) de aplicación de usuario; LD5 (verde) VBus y LD6 (rojo) over-current asociados a USB OTG
  • 2 pulsadores: usuario y reset
  • USB OTG con conector micro-AB
  • pines externos de recursos del procesador STM32F429ZIT6: TMR, PWM, ADC, DAC, I2C, SPI, USB, …
  • coste aproximado: 23$

Más info: Discovery kit with STM32F429ZI MCU * STM32F429I-DISCO

Chip STM32F429ZIT6: Chip STM32F429ZI
